Terminal B
Infrastructure

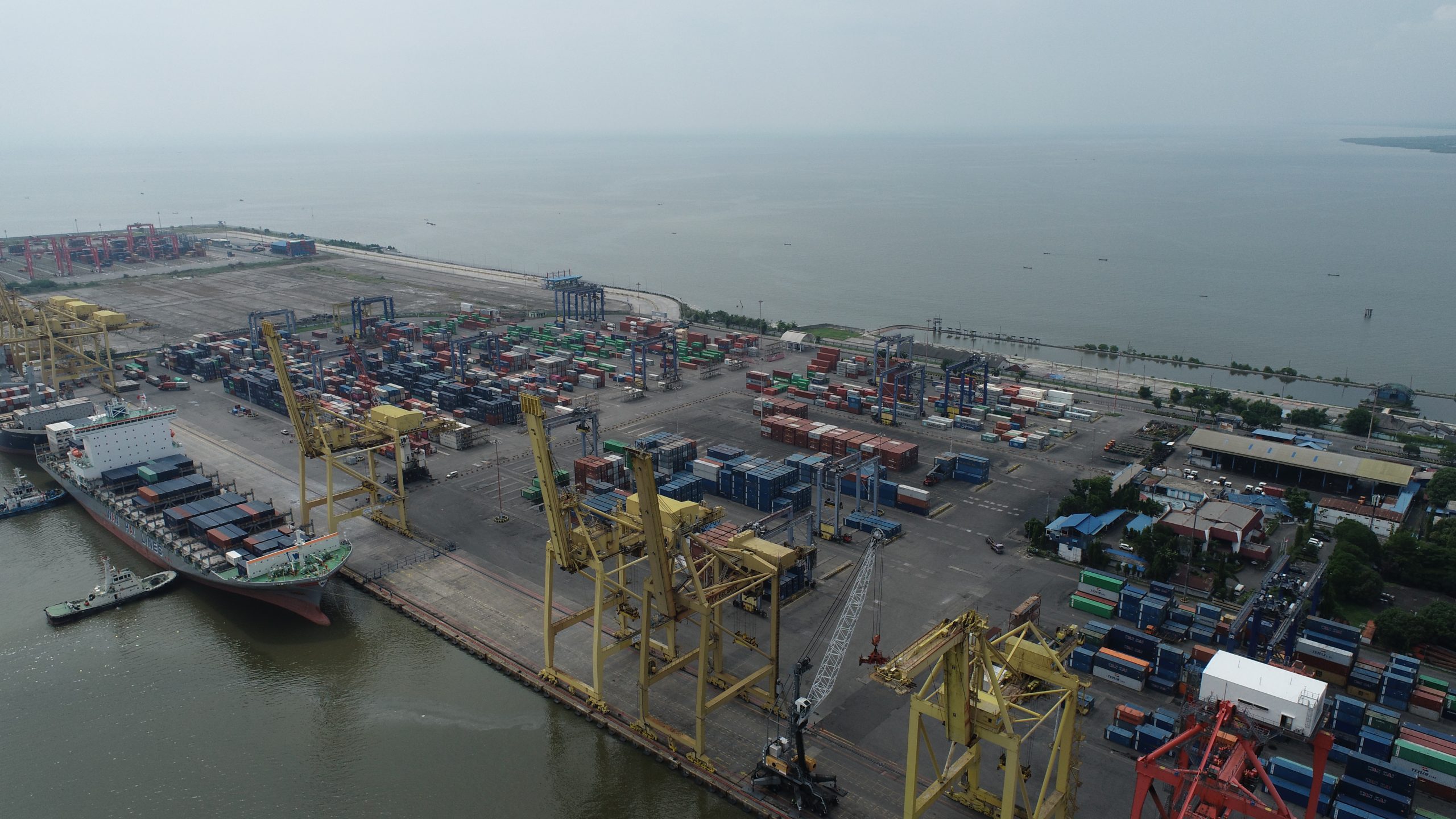

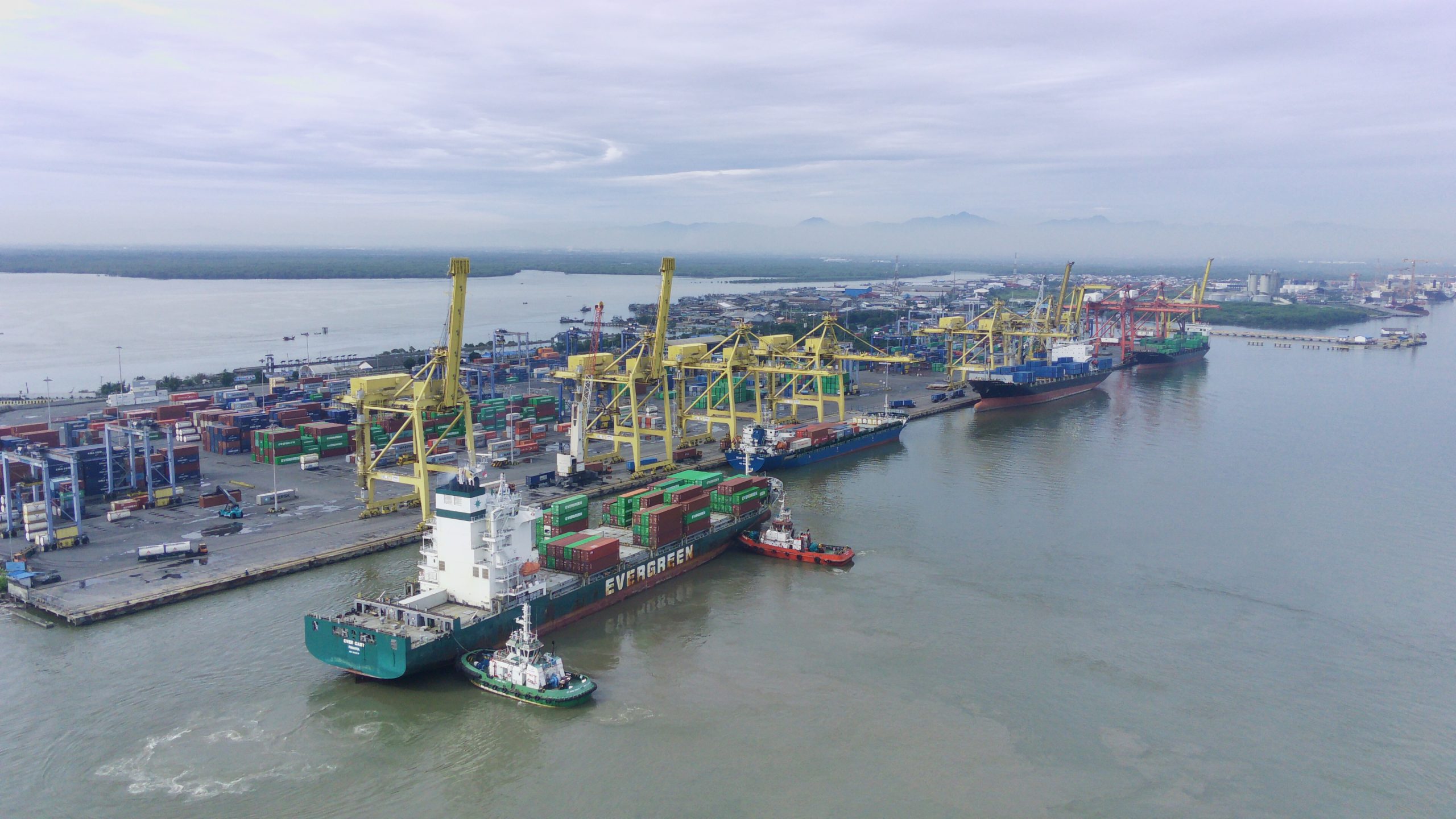

Wharf
- Depth -10 mLWs
- Berth 400m
- Structure: Tubular steel Pile
- Fender: V Type 1500L
- Pier floor/slab with a thickness of 40 cm (25 cm with precast method and 15 cm with cast in situ)
- Bollards: 70 Ton and 100 Ton Capacity
- Concrete quality used Fc 35 Mpa/K 450c

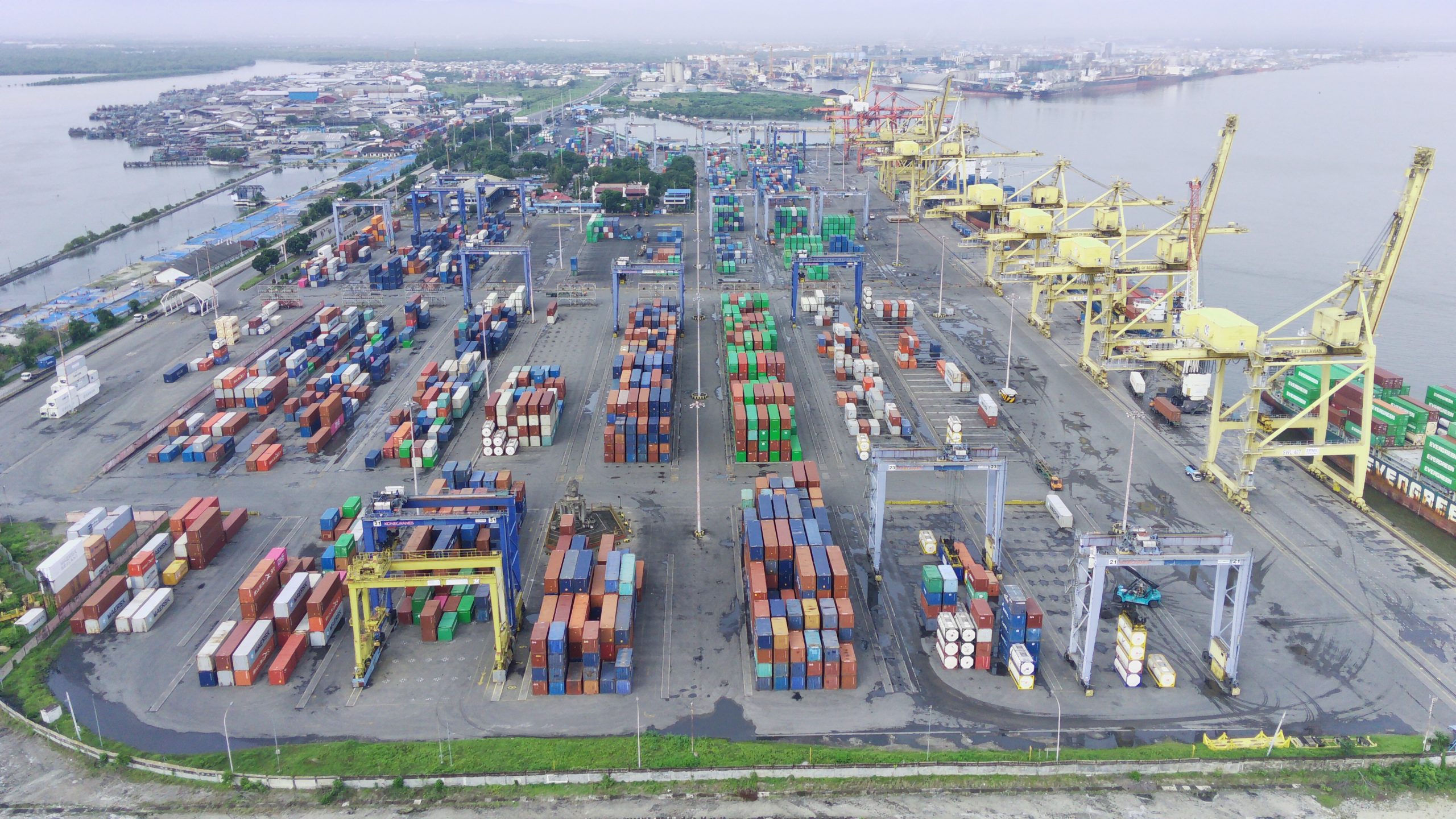

Container Yard
- Container yard : 11,2 HA
- Paving Block K-450, 10cm Thick
- Layer arrangement (40 cm thick subbase, 30 cm thick base course, 5 cm thick sand) 5 cm thick)
- Container pad (K-430 concrete)
- Max Capicity : 807.335 TEUs/year
Reefer Plug
Reefer Plug : 144 Units
- 8 Reefer Blocks
- Each block consists of 18 3 tier/floor reefer plugs
- Each Tier/floor consists of 6 Plug reefers
- Type 5792A MENNEKES 32A-3h/380-440 V 3P 50-60 Hz
Suprastructure
Ship To Shore (STS) Crane
- 4 units Panamax
- 36 m outreach, 26 m span
- Boom single girder
- Safety Weight Load (SWL) 40 Ton

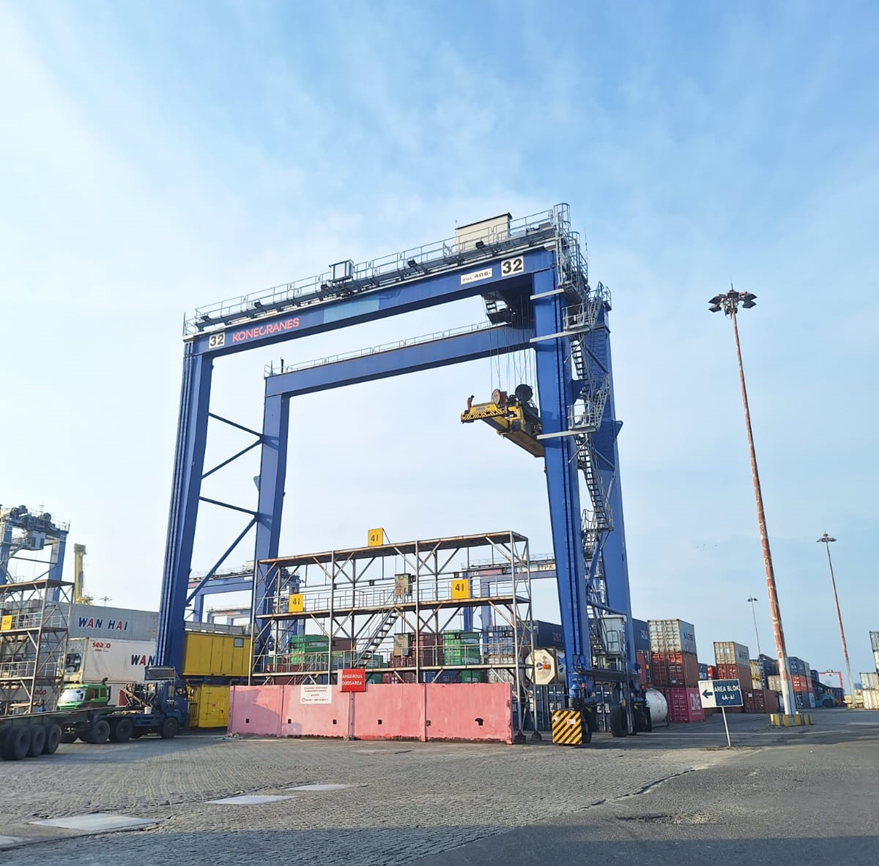

Rubber Tyred Gantry (RTG)
- 10 Units RTG
- Power Source Diesel Electric
- Safety Weight Load (SWL) 40 Ton
- Stacking 6 row + 1 Truck line
- Total Lift height 21 m
Terminal Truck
- 16 Units
- Right Handed Steering with hydrostatic orbital steering system
- 4-stroke Diesel Engine
- 200 Hp – Max 230 Hp
- Speed 25 Km/ H (Rated Load)
- Fully compressed Brake
- 6 Wheels of Head, Pneumatic Type
- 200 L Fuel Tank Capacity
